Victron Orion-Tr 12/24-5A 120W Isolated DC-DC Converter [ORI122410110]

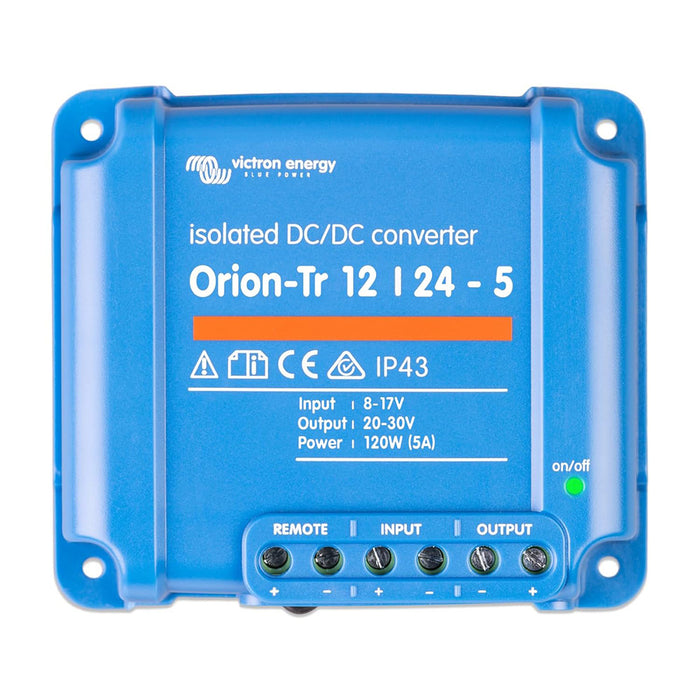

Orion-Tr 12/24-5A 120W Isolated DC-DC Converter

Remote on/off

The remote on/off eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or by for example the engine run/stop switch (see manual).

All models are short circuit proof and can be paralleled to increase output current. An unlimited number of units can be connected in parallel.

IP43 protection

When installed with the screw terminals oriented downwards.

Screw terminals

No special tools needed for installation.

Input fuse

On 12V and 24V input models only.

Specifications:

• Charger Input - Voltage: 12VDC
• Charger Output - Amps: 5A
• Charger Output Voltage: 24VDC
• Box Dimensions: 3"H x 5"W x 6"L WT: 1.15 lbs
• UPC: 8719076016724
